The Models browser lists rule-of-mixtures variants, Halpin–Tsai, Chamis, Mori–Tanaka, Hashin–Rosen, self-consistent, woven bridging and Cox elastic short-fiber choices. Architecture determines which choices are available.
Workflow / 03.2 Micromechanics
Translate constituents into
effective material behavior.
Choose a released architecture-compatible homogenization model, inspect its reference ply properties, and carry those properties into the laminate.
One cell. A whole fabric.

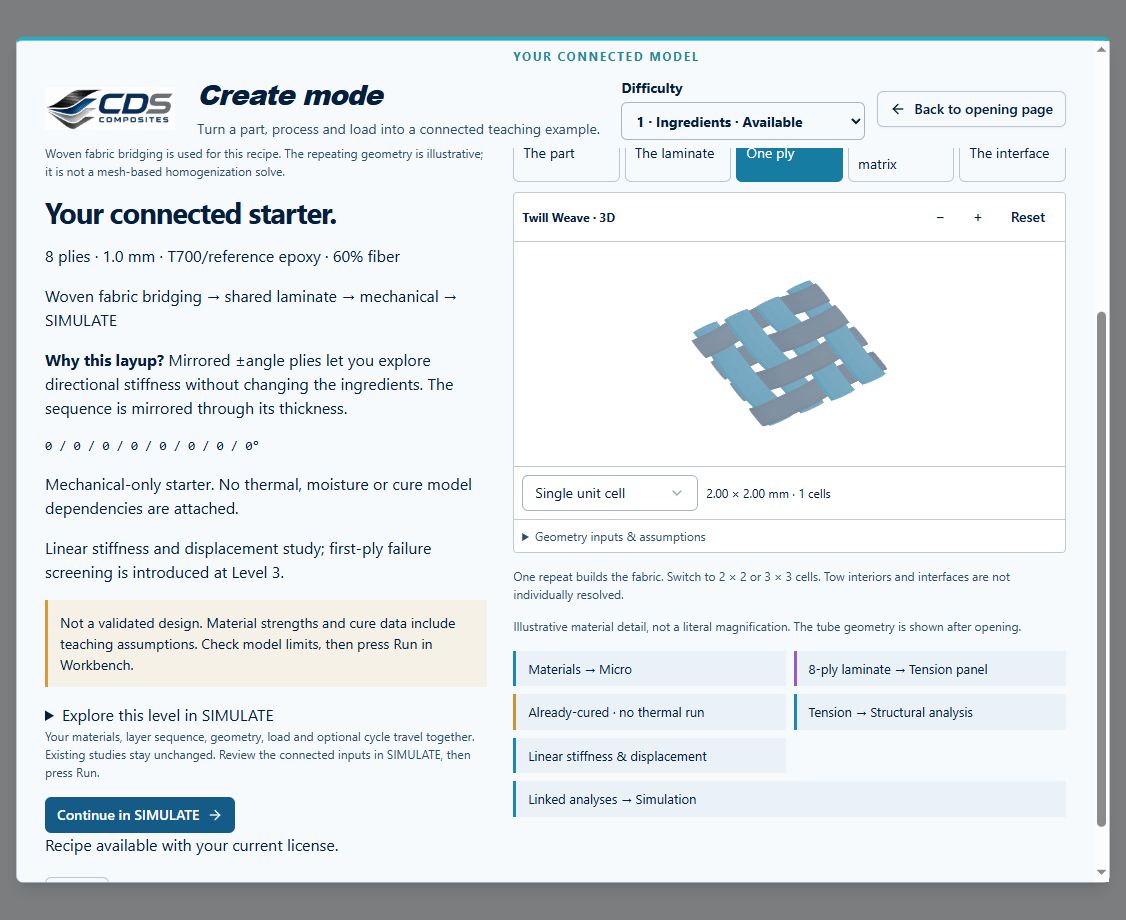

Explore plain, twill and satin yarn surfaces in Micro, Live Stack, CREATE and DISCOVER. Switch between one repeat and 2 × 2 or 3 × 3 cells, then rotate and zoom. CREATE carries the selected weave and woven bridging model into SIMULATE, subject to your license.
Captured from the Workbench components in a local preview, September 17, 2026. Missing yarn dimensions are inferred and listed under Geometry inputs & assumptions. These are periodic surface illustrations—not measured textile CAD, solid exports or a mesh-based solver. Effective properties are calculated separately by the selected micromechanics model.
- Fiber modulus
- 230 GPa
- Matrix modulus
- 3.5 GPa
- Matrix volume
- 38%
- Axial mixture estimate
- 139.33 GPa
Zero-stiffness void phase; no empirical void knockdown or transverse prediction.
03.2 / Workflow focus
Connected engineering recordShort-fiber scope
Cox shear-lag elastic studies use prescribed geometry and orientation. The event-driven Henry–Pimenta RVE and its stochastic discontinuous-fiber failure route are not enabled in the hosted release.
Ply-property handoff
The selected Micro recipe supplies reference properties to its linked plies. Shared material or Micro edits can change multiple laminate calculations.
Explore and compare
Use an exercise or supported property sweep to compare model assumptions, constituent limits and sensitivity. Predicted strengths and teaching defaults are not qualified allowables.
Workbench availability: released models, inputs and compatible study paths. The wider theory library includes reference formulations not available in every Workbench solve.
Use this workflow in Workbench: interactive Blocks, record selections and connection controls →
Connected model layer
Micromechanics · released model connections
Expand a family for inputs, outputs, supported formulations, theory and an exercise. All model families ↗
∑ Micromechanics
Models browser → Micromechanics · source: Micro
InputsConstituents, architecture, fractions and calibrated modifiersResults / handoffReference ply properties for each linked laminate ply
One compatible homogenization model per Micro recipe. Use separate recipes for comparisons; they are not combined in a single ply.
Formulations and study choices
- Halpin–Tsai
- Rule of mixtures
- Modified rule of mixtures
- Chamis
- Mori–Tanaka
- Hashin–Rosen
- Self-consistent scheme
- Woven fabric bridging
- Cox shear-lag elastic
∑ Wiener series and parallel
Models → Electromagnetics · RF → Wiener series and parallel
InputsExplicit host/inclusion electrical properties and fractionsResults / handoffEffective permittivity; manual handoff to an RF layer, not an automatic mechanical-property update
Positive lossless dielectric bounds; complex directional estimates.
Formulations and study choices
- EM · Wiener series and parallel
∑ Looyenga / Landau–Lifshitz–Looyenga
Models → Electromagnetics · RF → Looyenga / Landau–Lifshitz–Looyenga
InputsExplicit host/inclusion electrical properties and fractionsResults / handoffEffective permittivity; manual handoff to an RF layer, not an automatic mechanical-property update
One cube-root mixing law, not two independent models.
Formulations and study choices
- EM · Looyenga / Landau–Lifshitz–Looyenga
∑ Maxwell–Garnett
Models → Electromagnetics · RF → Maxwell–Garnett
InputsExplicit host/inclusion electrical properties and fractionsResults / handoffEffective permittivity; manual handoff to an RF layer, not an automatic mechanical-property update
Dilute subwavelength spherical inclusions in a host.
Formulations and study choices
- EM · Maxwell–Garnett
∑ Bruggeman symmetric EMT
Models → Electromagnetics · RF → Bruggeman symmetric EMT
InputsExplicit host/inclusion electrical properties and fractionsResults / handoffEffective permittivity; manual handoff to an RF layer, not an automatic mechanical-property update
Two positive-permittivity phases; no explicit contact network.
Formulations and study choices
- EM · Bruggeman symmetric EMT
∑ EM Mori–Tanaka
Models → Electromagnetics · RF → EM Mori–Tanaka
InputsExplicit host/inclusion electrical properties and fractionsResults / handoffEffective permittivity; manual handoff to an RF layer, not an automatic mechanical-property update
Scalar principal-axis ellipsoidal field approximation.
Formulations and study choices
- EM · EM Mori–Tanaka
∑ EM self-consistent
Models → Electromagnetics · RF → EM self-consistent
InputsExplicit host/inclusion electrical properties and fractionsResults / handoffEffective permittivity; manual handoff to an RF layer, not an automatic mechanical-property update
Scalar principal-axis self-consistency; spherical case equals Bruggeman.
Formulations and study choices
- EM · EM self-consistent
∑ Differential effective medium
Models → Electromagnetics · RF → Differential effective medium
InputsExplicit host/inclusion electrical properties and fractionsResults / handoffEffective permittivity; manual handoff to an RF layer, not an automatic mechanical-property update
Incremental mixing with time-step refinement check.
Formulations and study choices
- EM · Differential effective medium
∑ Coated sphere and interphase
Models → Electromagnetics · RF → Coated sphere and interphase
InputsExplicit host/inclusion electrical properties and fractionsResults / handoffEffective permittivity; manual handoff to an RF layer, not an automatic mechanical-property update
Concentric subwavelength coated spheres; no dynamic Mie scattering.
Formulations and study choices
- EM · Coated sphere and interphase
∑ Generalized multiphase EMT
Models → Electromagnetics · RF → Generalized multiphase EMT
InputsExplicit host/inclusion electrical properties and fractionsResults / handoffEffective permittivity; manual handoff to an RF layer, not an automatic mechanical-property update
Spherical multiphase Bruggeman with convergence checks.
Formulations and study choices
- EM · Generalized multiphase EMT
